Volume-Up Guide System

Devised for preventing food penetration and forming natural cervical area by restoring contracted buccal alveolar bone & gingiva to the original shape and width

Volume-up Gauge

Used to guide the position of implant placement and to guide the election of the Healing Abutment dimensions in order to keep the cervical portion of the implant prothesis at the natural tooth width.
Used with the Volume-up Parallel Pin for multiple units or bridge.
Used with Point Drill (∅2.1mm or less)
Laser marking identifiable from any position.

*Actual diameter is 2mm larger than the diameter marked on the Volume-Up™Guage (Eg. ∅6.5 marked on the Guage is actually ∅8.5)

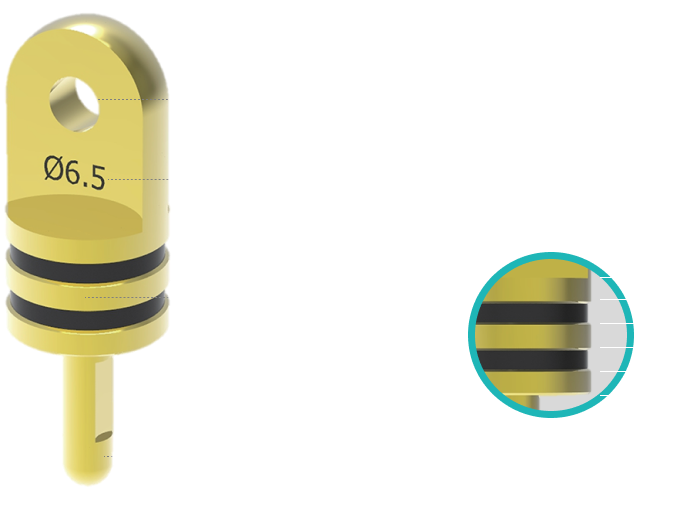

Volume-up Parallel Pin

Used for bridge or multiple units with the Volume-up Gauge.
For bridge or multiple units.
For ∅3.5, ∅4.5 and ∅5.5, place the fixture and use the Healing Abutment instead of the Volume-up Parallel Pin.

Ø6.5 Ø7.5 Ø8.5

KVPP65

KVPP75

KVPP85

01Single Implant

Set the Volme-up Gauge on the implant site according to the diameter line marked on the Volume Up Gauge

Position the Pint Drill in the drill insertion groove of the Volume-up Gauge

Drill and place the implant in accordance with the manufacturer’s implantation sequence

If implant placement torque is equal to or over 20 ~ 30N.cm, connect the Healing Abutment. If not, connect the Cover Screw and do primary closure.

02Multiple Implants & Bridge

Set the Volum-up Gauge and position the Point Dril

Insert the Volume-up Parallel Pin into the hole formed after point drilling.

Carry out the same as the previous step.
